Aluminum profile xun wave AC coloring power supply, widely used in aluminum alloy hard oxidation, stainless steel polishing, pulse aluminum oxidation, aluminum alloy oxidation, anodic oxidation, cathodic oxidation, electrochemical polishing, oxidation after the electrolysis of its coloring.



1, DC - AC coloring power supply not only for tin salt, salt has good coloring ability, but also has good adaptability to nickel salt, especially the special formula of single nickel salt, shallow series (champagne, imitation stainless steel color, etc.)

2. It has the functions of automatic conversion of stable pressure and steady flow, adjustable forward and reverse time, digital timing, air mixing, strong and weak air supply, temperature monitoring, tank liquid heating, automatic temperature control, stepless pressure regulation, etc.

3. Use pulsating DC to homogenize the surface film of aluminum alloy after oxidation, such as activation and molding.

4, the use of alternating current (AC) electricity for metal ion electrodeposition coloring, so that the formation of color color difference is small, good color consistency;

5, Pulse soft start 1-32 minutes adjustable, especially suitable for aluminum hard oxidation;

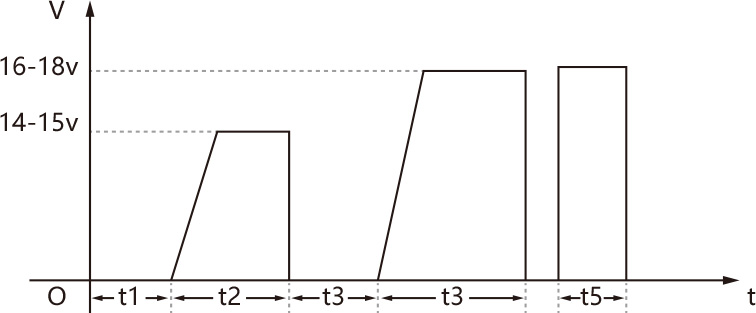

6, can manually or automatically complete the aluminum profile AC/DC coloring process curve.

7, protection function is complete: with lack of phase, under voltage, short circuit, over current protection, full care equipment.

8, the input voltage can be single-phase or three-phase, the output voltage is single-phase AC positive wave.

9, you can set a color can be matched with a coloring program, which will make the operation more simple

10, Power supply and special remote control unit constitute a whole, microprocessor high precision control machine.

11, from DC to AC cycle without wear conversion; Optimized adjustable transformer control, large screen display of the whole process data (voltage, current, temperature, time)

The operation is very simple, the user can operate through the remote control unit at the edge of the slot, and also reduce the occurrence of errors. In addition, customer-specific shaders can be easily saved and reused at any time. Optimized and adjustable transformer control ensures conditional reproducibility for products with different loads (30-100% full load) compared to electronic DC-AC systems.

Output AC current: 0A ~ 50000A

Output AC voltage: 0V ~ 300V
