Use in Chrome, Hard Chrome and Decorative Chromium, Non-Crack Hard Chromium, Copper,

Stripping, electrolytic Degreasing and Other Need DC Large Current Cycle  Commutation Industry.



1. The silicon controlled rectifier transformer adopts three-phase five-column type, the transformer core is made of high-quality cold-rolled silicon steel sheet, which saves 10% electricity than the general silicon controlled rectifier. This series of power supply has the function of voltage and current stabilization (accuracy ≤1%), soft start, and the main control element adopts high-quality imported components.

2, true frequency pulse output waveform is good, high stability accuracy, steady current accuracy to 0.5%, current ripple coefficient is less than 1%, the current distribution is good, the coating structure is denser, the surface is brighter, adhesion is stronger, better plating ability.

3, with ultra-low ripple coefficient, ripple coefficient ≤2%, the lowest up to 1%, especially suitable for hard chromium plating process, can completely replace DC. Equipped with remote control box, the plating tank can be isolated from the power supply, and according to the need to install the timing alarm function and ampere-hour meter.

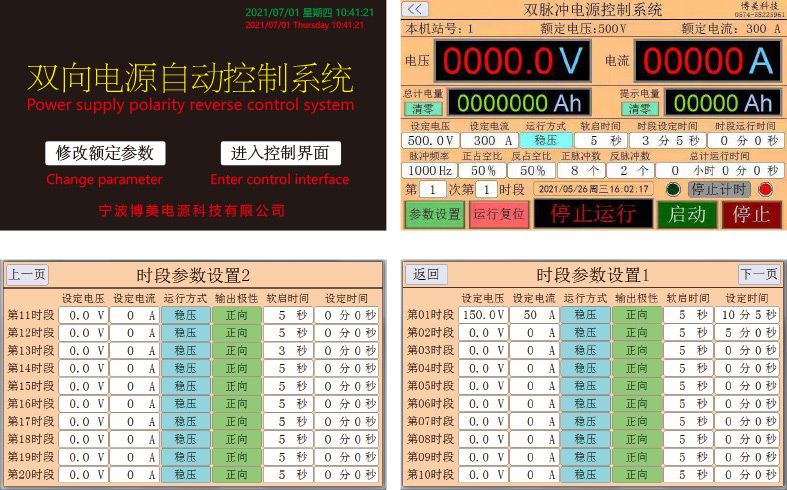

4, with reversing, forward, reverse three optional working state, can automatically change the polarity of output current, is conducive to increase the coating hardness, density and brightness;

5, with automatic timing function, can better achieve chrome-plated layer thickness, hardness, wear resistance and other quality control;

6, can also be made according to the process requirements of the two-step automatic punching function.



Output current: 50A ~ 50000A

Output voltage: 12V ~ 36V

Cooling mode: air cooling
