Widely Used in Industrial Control, Sewage Treatment, Electrodialysis, Electric Flocculation, Electrophoresis, Electroplating, Monocrystalline Silicon Heating, scientific Research, PCB, Electric Power, Metallurgy, Communications Equipment, Motor, Laboratories, Various Aging Test, ship, Medical and Other Need High Quality DC Power Supply Place, is Water Treatment and High-End Surface Treatment of Primary Power Supply.



The main high-frequency transformer with nanocrystalline magnetic core and imported high-power IGBT module as the main power component ensure the quality of high-quality materials.

All digital design, each unit adopts industrial grade modular microcontroller as the control chip, with perfect protection function. At the same time, it has MODBUS fieldbus network and parallel fieldbus network. Man-machine interface control function of local operation, the system supports timing counting and adding control function of potion, soft start and timing function.

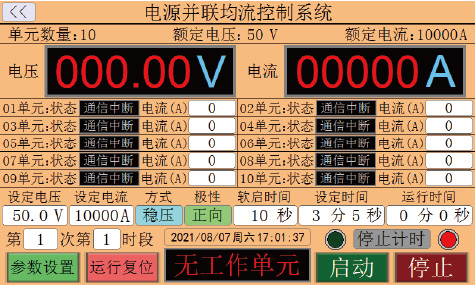

Using touch screen control, modular power supply design, through the N+1 residual power supply system, to achieve capacity expansion, improve the reliability of the power system, users produce greater efficiency.

10 process curves can be stored, each of which can be set to 30 sections of working state. Each section has soft start time, timing function, and digital setting of working voltage or current. It can realize independent voltage/current steady working mode, and the average current precision of each module is less than 1%.

One key start, master and slave control mode, etc. Compact and scientific structure design, simple and flexible installation.

Microcomputer full digital intelligent control system, control signal, no attenuation, ensure high output precision, convenient production management.



DC output current: 0A ~ 100000A

DC output voltage: 0V ~ 800V optional

Cooling mode: air cooling and water cooling

Customized special power supply
